Hydroponic Vertical Garden: 5 System Types Compared (What Actually Fits Your Space)

A hydroponic vertical garden grows plants in a stacked, tower, or wall-mounted configuration without soil, delivering nutrient solution to roots through a pump or gravity feed. The fastest way to pick one: if you want plug-and-play, a pre-built tower ($50–$899) fits a 1–2 sq ft footprint and holds 5–44 plants. If you want max density on a wall, a DIY NFT panel ($80–$200) packs 16–32 plants into 2×3 ft. If you want the cheapest entry point, a PVC column ($40–$80) or pallet garden ($20–$50) gets you growing this weekend. The Lancaster (PMC) data on 13.8× yield per square meter is real. But it comes with a catch most guides skip: bottom-layer plants in that same study produced 43% less fresh weight than the top layer because of light fall-off.

I researched this because most guides either show you a $900 pre-built tower or a tangled DIY PVC build with no middle ground. There are five distinct system types that span $20 to $900, and the right one is decided by space, budget, build-vs-buy, and whether you can hang weight on a wall.

I'm Carl, and I curate this blog. I'm not a licensed agronomist. Every number here links back to the university extension, peer-reviewed paper, or brand page it came from. Verify anything that affects your buying decision.

What Is a Hydroponic Vertical Garden?

A hydroponic vertical garden arranges plant sites vertically. That could mean stacked in a column, mounted on a wall, or layered in horizontal rails. Either way, nutrient solution reaches roots without soil and floor space stops being the limiting factor. The defining feature isn't the absence of soil (that's just hydroponics); it's the trade of footprint for height.

The UF/IFAS Extension puts the practical upside simply: a single tower or 2×3-foot wall panel supports 20–36 plants in the footprint a raised bed uses for 4–6. That ratio (not aesthetics or novelty) is why vertical hydroponic systems dominate apartment balconies and small indoor spaces. If you're new to soil-free growing entirely, the indoor hydroponic garden overview covers the basics before you commit to a vertical build.

The 5 System Types — What Each One Is

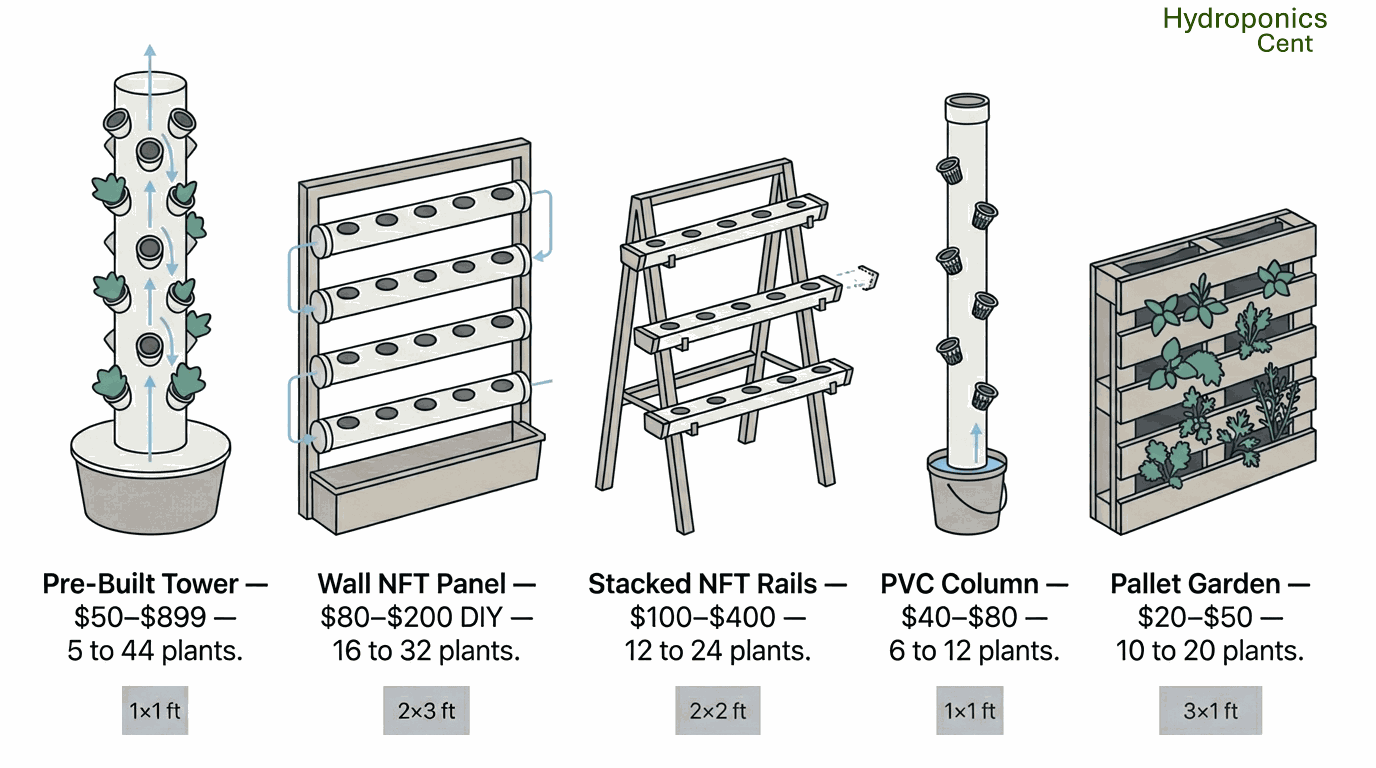

The five hydroponic vertical garden types are: pre-built towers ($50–$899, plug-and-play), wall-mounted NFT panels ($80–$200 DIY, max density on a wall), stacked NFT rails ($100–$400 kit / $100–$150 DIY, best for lettuce farms), PVC pipe columns ($40–$80 DIY, cheapest active system), and pallet gardens ($20–$50 DIY, cheapest overall). Each fits a different combination of space, budget, build-vs-buy skill, and whether you can hang weight on a wall.

Pre-Built Tower Systems

Pre-built towers (Lettuce Grow, Gardyn, Tower Garden, budget Amazon options) are the plug-and-play end of vertical growing. A pump circulates nutrient solution from a base reservoir to the top, where it cascades down past each planting pocket.

Capacity: 5–44 plant sites. Prices: $50 (basic Amazon aeroponic) to $899 (Gardyn Home 4), verified May 2026. Confirm on brand sites. The split that decides most purchases is proprietary vs. open: Gardyn and Tower Garden lock you into branded seed pods ($400–$600/year); Lettuce Grow and similar use standard net pots you fill yourself ($20/year in growing medium). For a full breakdown of 7 specific towers with side-by-side costs, see the hydroponic garden tower comparison.

Wall-Mounted NFT Panels

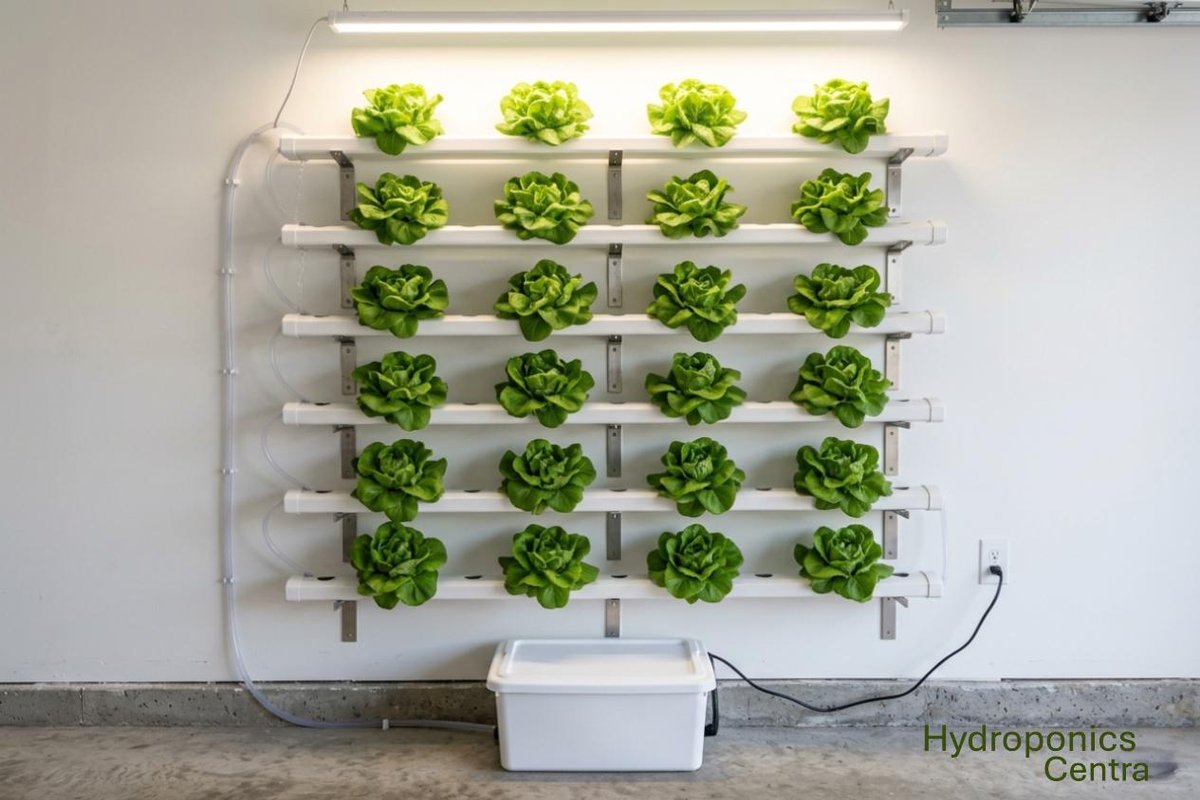

NFT (Nutrient Film Technique) panels mount flat against a wall, with a thin film of nutrient solution flowing continuously through horizontal channels. You can buy pre-made or build from 2-inch PVC fence posts and standard plumbing fittings.

DIY wall NFT panels hold 16–32 plants in a 2×3-foot footprint for $80–$200 in materials. Of every DIY build I reviewed, this had the best density-to-cost ratio. It beats any pre-built option once you're comfortable with basic plumbing.

Stacked NFT Rails

Two to four horizontal NFT channels stacked vertically on a frame, fed from a single reservoir. Less dense than a wall panel but easier to service: you can pull a single rail to transplant or harvest without disturbing the rest.

Kits (CropKing and similar) run $150–$400; DIY from PVC channel runs $100–$150. The pull-out advantage matters most when you're staggering crops with different harvest dates.

PVC Pipe Columns

The classic DIY vertical: a 4-inch PVC pipe with 2-inch holes drilled every 6 inches, mounted vertically. Nutrient solution pumps from a bucket reservoir to the top and flows down past net-cupped roots.

Total cost: $40–$80 in materials at Home Depot. Oklahoma State University Extension publishes a free build guide (HLA-6724) for exactly this column, the most credible free resource I found. The OSU guide specifies an 80–120 GPH pump for a 5-foot column. The most common beginner mistake is buying a 400 GPH pump and drowning the top plants.

Pallet Gardens

A wooden pallet lined with landscape fabric, stood upright, and packed with growing medium. Cheapest entry: free or $5–$20 for the pallet, plus fabric and nutrient solution.

Pallet gardens work best outdoors with passive watering (hand-watering or a drip line from a raised reservoir). Trade-off: without a pump and reservoir, EC and pH drift more. That's fine for herbs and fast greens, not for anything with a longer window.

Comparison Table

The right system depends on build-vs-buy, plant count, and indoor-vs-outdoor. The table names a winner for each use case; the sections above explain the reasoning.

Prices verified May 2026. Confirm with retailers before purchasing. Costs vary by supplier and configuration.

Lighting, Reservoir Size, and Weight — The Three Specs Most Guides Skip

A hydroponic vertical garden needs a DLI of 12–17 mol/m²/day for leafy greens (with side-mounted LEDs per tier past two levels), a reservoir of 0.25–0.5 gallons per plant site, and a structural mount rated for roughly 8.34 lb per gallon of loaded water. Miss any of these and a system that looks correct on paper fails in practice. Most roundups stop at plant count. These three specs decide whether the system actually works in your space.

Lighting per tier. Leafy greens want a DLI of 12–17 mol/m²/day at a PPFD of 200–300 μmol/m²/s. A peer-reviewed vertical hydroponic lettuce study found an optimal DLI of 11.5 mol/m²/day for iceberg. Higher (14.4) actually reduced fresh weight. The vertical-specific problem: a single overhead light leaves the bottom tier underlit. If you're stacking more than two NFT rails or running a 5-foot column indoors, plan for side-mounted LED bars per tier or accept the gradient.

Reservoir sizing. Rule of thumb: 0.25–0.5 gallons per plant site for active systems. A 20-plant tower needs 5–10 gallons; a 30-plant wall panel needs 8–15. Undersized reservoirs swing pH and EC fast and overheat under lights. Lettuce Grow's Farmstand uses ~20 gallons for 24 sites, at the upper end, which is why their EC stays stable.

Weight and structural load. Water weighs 8.34 lb/gallon. A full 12-gallon tower reaches ~100 lb loaded, fine on most floors (typical residential live load is 40 lb/sq ft), worth verifying on older balconies. Never mount a wall NFT panel into drywall alone. Anchor into studs or use a French cleat into framing. A 30-plant wall panel with 6 gallons of solution can pull 70+ lb at the mounting points.

What the Research Says About Yield

Vertical hydroponic systems produce 13.8× more yield per square meter of floor space than horizontal setups, per the Lancaster-affiliated study comparing both configurations directly. The mechanism is density, not magic: 1,000 plants per square meter vs. 50. A separate meta-analysis of lettuce crops found vertical farming yields of 7.1 kg/m² per cycle, 2.4× higher than horizontal production at 3.0 kg/m².

The part most summaries skip: the same Lancaster study found the bottom layer produced 43% less fresh weight per plant than the top, because light fell off down the column. Without per-tier lighting, your best lettuce will be on top and your worst at the bottom. Plan rotations or accept the gradient.

On water: a PMC analysis found hydroponic systems use up to 95% less water than soil for the same crop. Vertical setups amplify this. The reservoir is compact, the loop is closed, and almost nothing evaporates.

The honest caveat: these figures come from optimized commercial environments. Realistic home expectation is 2–3× the yield of a horizontal tray, not 13×. Still a compelling reason to grow up.

What to Grow — and What to Skip

Grow these: Lettuce (harvest in 3–4 weeks), basil (4–6 weeks), spinach (3–5 weeks), kale (5–7 weeks), mint, cilantro, arugula, and Swiss chard. Harvest timing per UF/IFAS Extension. These crops stay compact, need shallow root space, and produce continuously if you harvest the outer leaves rather than pulling the whole plant. For the herb-by-herb pH, EC, and harvest data, see the hydroponic herb garden guide.

Strawberries work in towers with larger 3-inch pockets. They need more root volume than herbs but less than any fruiting vegetable.

Skip these, and here's why: Tomatoes, peppers, cucumbers, and zucchini fail in vertical systems for three reasons. Root volume: a productive tomato grows a root ball over a gallon, while tower pockets hold a 2–3 inch net cup, so the plant starves as it fruits. Weight: an indeterminate tomato with fruit set adds 5–8 lb to a single pocket, beyond what most tower brackets are rated for. Canopy and pollination: peppers and cucumbers need lateral spread, and indoor fruiting needs hand-pollination every other day. A 5-gallon DWC bucket on the floor handles all three. See the DIY hydroponic garden builds for that setup.

Troubleshooting — The 3 Most Common Vertical Garden Problems

Uneven watering is the most common failure in DIY vertical hydroponic builds. Top plants drown, bottom plants dry out. Fix: add a drip emitter at each planting hole rather than relying on passive overflow, and size the pump correctly (80–120 GPH for a standard 4-inch PVC column, not the 400 GPH unit most beginners buy).

Root blockage clogs the interior column when upper-plant roots grow downward into the flow path. Monthly inspection and trimming root tips back to the net cup prevents full blockages. Fast-growing crops like basil are the worst offenders.

Nutrient drift down the column raises EC measurably at the bottom of tall gravity-fed systems as solution concentrates past each plant. Keep tower height under 5 feet and check EC at the reservoir (not just the top) every few days until you know your system's pattern.

My Take

Vertical hydroponic gardening solves one specific problem: you want to grow fresh food but don't have horizontal space. If that's your situation (apartment balcony, spare wall, narrow patio) it genuinely delivers.

My recommendation for beginners: start with a pre-built tower in the $50–$200 range before building anything. The OSU PVC column is legitimate and cheap, but uneven water distribution punishes first-time builders who get pump sizing wrong. A pre-built tower teaches you the nutrient cycle and plant spacing first, then you build the wall NFT or stacked rail that actually fits your space.

What surprised me most in the research was that bottom-tier penalty. 43% less fresh weight in the Lancaster data. Every guide quotes the 13.8× headline and skips that footnote. It doesn't kill the case for vertical growing; it just means you should plan to rotate plants between tiers or accept that the top of your tower will always outperform the bottom.
